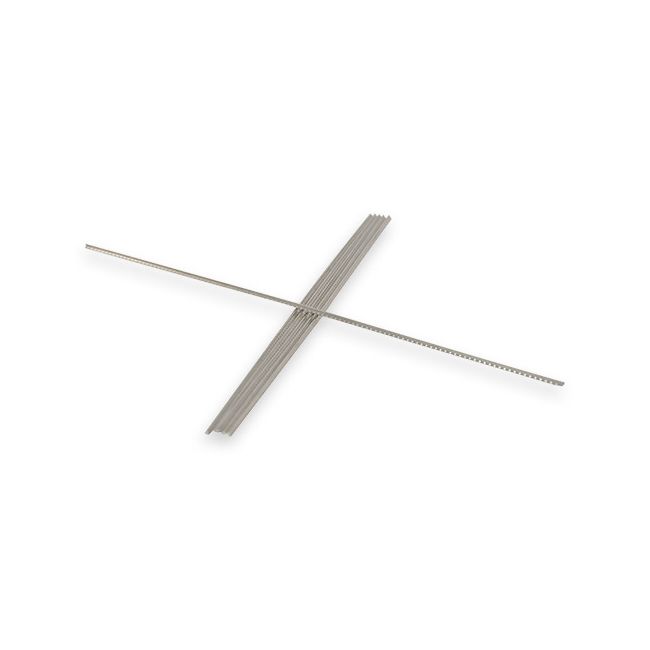

260mm Sintoms 2.3 fret wire extra hard
260mm single piece of straight fret wire, sufficient for at least 4 frets. This high quality fret wire is made of an extra hard silver-nickel composition. For a full fret job 6 pcs are recommended.
The measurements of this fret wire are:
Crown width: 2.3mm
Crown height: 1.08mm
Tang width: 0.5mm
Sizes of fretwire are sometimes mentioned in terms such as Small, Jumbo etc. For convenience we list them here - in apr. mm:
width | height | |
Small | 1,98 | 1,09 |
Modern Narrow | 2,29 | 1,2 |
Modern Narrow & Tall | 2,29 | 1,4 |
Vintage jumbo | 2,59 | 1,07 |
Medium Jumbo | 2,69 | 0,91 |
Jumbo | 2,79 | 1,4 |
Fretting:
Work from outside to the center. The wire is cut by fitting it from the most outer position and using the remaining part for the opposite outer.
Check if your fret slots are deep enough to fit the fret.
You can mark the required height with a marker on a steady piece of paper and move it through the fret slots.
Your marking should not be visible, or that slot needs a little more sawing.
When the slots are checked and cleaned and your wire is cut, place a small amount of thin instant glue in the fret slot.
I always use a flexi tip to avoid spills.
Put your fret in place and apply force either with a press or with a fret hammer.
After all frets are set, you need to level them. First set your neck straight by adjusting the truss rod.
Use your radius block with sanding paper or fret level file to level your frets. When you mark the tops of your frets with a marker, you can follow the progress.
Check with a leveler or straight ruler if your frets are leveled.
After this, your frets require crowning and polishing.
Make sure to protect your fretboard while doing that with a fretboard protector or paper tape.
The sides are cleaned most easy with a block file with which you can also round the corners of the frets and your fretboard.
Any visible sloth openings on the sides can be filed with a mixture of clear wood like Titebond Quick & Thick glue and sanding dust that matches your fretboard.
Find out more about working with frets in our how-to's about frets.
Item | 132009 |
---|---|
Brand | Sintoms |
Color | Silver |
Material | Nickel silver 18% extra hard |
Crown height | 1.08 |
Crown width | 2.3 |
Size | 2.3x1.08x260mm |
Weight | 44 g |
Sales unit | pce |
