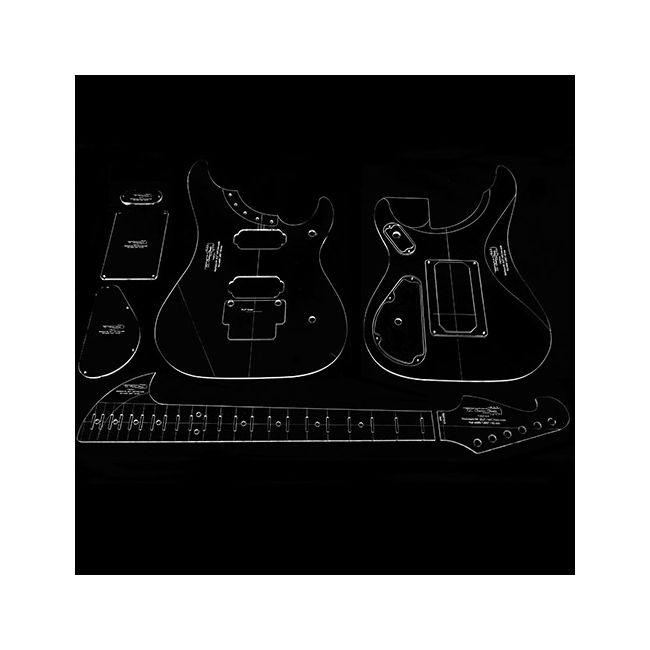

With this durable set of recycled Acrylic you get an accurate template for a Washburn N4 USA Guitar. The measurements are taken from an instrument with S/N 09101xx. The templates are made from 5mm thick transparent Acrylic which provides optimal sight on your workpiece and is a lot more durable than MDF.
The body templates have centerlines and pockets for the electronics and the hardware.
The special Stephen’s neck / fretboard template has 10mm holes for the tuners, 6mm holes for the position dots and even openings to mark the fret positions on your fretboard.
This set contains:
- Body template front
- Body template back
- Stephen’s neck template that can also be used for the fretboard (extend higher fret positions and mark on fretboard)
- Headstock
- Cavities
- Cavity covers
Important specifications:
- Nut width: 43mm / 1.693"
- Scale: 25,5" / 647,7mm
- Frets: 22
- Pickup formfactor: Humbucker (Seymour Duncan / Bill Lawrence)
- Floyd rose
- Neckplate: Stephen’s Extended Cutaway neckplate
Measurements and depths:
Headstock:
- Thickness headstock: 14,6mm
- Headstock angle: 15 degrees
Neck and fretboard:
- Thickness neck with fretboard 1st: 19,5mm
- Thickness neck with fretboard 7th: 21,5mm
- Thickness neck with fretboard 12th: 22,6mm
- Thickness fretboard 6,2mm
- Thinkness foot: 19,5mm
Body:
- Thickness body: 45mm
- Depth control cavity: 39,5mm
-- Edge depth: 2,7mm
- Depth Switch cavity: 39,5mm
-- Edge depth: 2,7mm
- Depth tremolo cavity: 19mm (shallow part)
- Depth bellycut: 24,5mm
- Depth neckpocket: 18,4mm
- Depth pickups: 20mm
- Depth bridge at studs: 5,5mm
- Depth bridge at Floyd: 10mm
Scarf joint distance to start headstock: 71mm (measured at bottom of neck)
Tip: also look at our suggested product for the neck shape template and Stephens Stainless steel neckplate.
Note: These templates are made when ordered it could be that shipping will take 1 day longer.
Use:
- Make sure your workpiece is placed steady, flat, at a good height with a comfortable working position and good view on your work area.
- Be focused.
- With routing, always wear protective clothing such as eye and ear protection and a dust mask. Use a vacuum cleaner to remove waste material and prevent that from heaping up.
- Set the RPM to the advised rate that comes with your machine or router bit.
- Keep the ball bearings of your template bits clean before and after use to make sure the bearing doesn’t get stuck during routing.
- Never route too much material at once to prevent your router from breaking away and to avoid unnecessary ware on your router bit. Guide is maximum half of your router bits height and half of its diameter.
- To create sufficient depth while keeping the guidance bearing of your template bit against the template, work with different lengths of bits, changing them when more depth is required.
- Secure templates with good double-sided sticky tape. If you secure the template with clamps, protect the wood of the body and make sure that your router can move freely.
- Always use our templates so that the text is readable (or for left handed so that none is readable).
- You can use the neck template to mark the fret positions on your fretboard. Always cut your fret slots before routing the shape of your fretboard.
- Always check before routing if your purchased hardware and pick-ups fit in the template cavities.
| Item | 116213 |
|---|---|
| Brand | TLC Guitar Goods |
| Model | Washburn N4 USA |
| Type | Complete set |
| Material | Plexiglass |
| Weight | 1334g |
| Sales unit | set / 3 |
