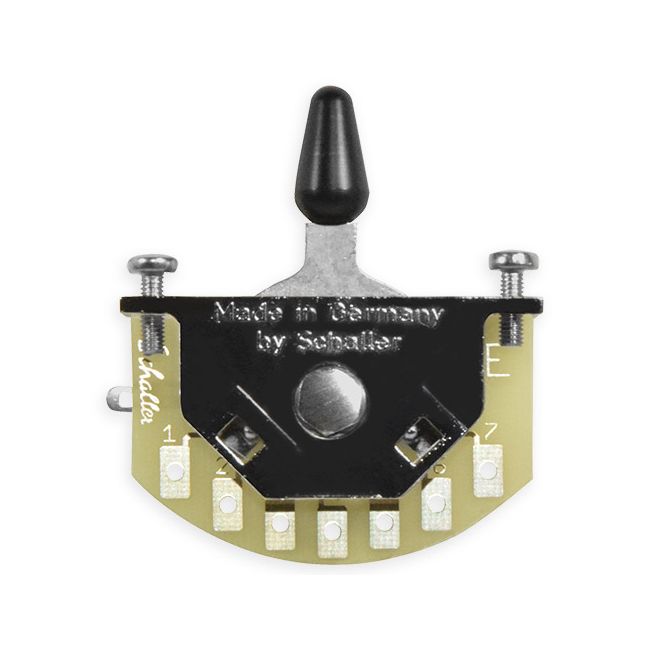

Schaller Megaswitch E Type 5-way
A genuine piece of German high tech craftsmanship. This switch gives you coil combinations on the pickups which are impossible to create with conventional switches. The high quality soldering lugs and mechanics are designed for durable smooth performance. Complete with wiring diagrams in the underneath detailed info.
The E type is a 5-way, has 7 soldering lugs and offers at least 5 different wiring options.
Instructions:
Download your wiring diagram HERE and decide which combination you want to apply.
Soldering tags on the printed circuit are marked from 1-7 or from A-X.
Mount the switch so the PC (Printed Circuit) is facing to the strings. On left-hand guitars, the plated side faces away from the strings.
Options:
|
Type E |
Type M |
Type T |
Settings |
5 |
5 |
3 |
Soldering lugs |
7 |
12 |
8 |
Combinations |
5 |
11 |
11 |
SS |
|
V |
V |
SSS |
V |
V |
V |
SH |
|
V |
V |
HS |
|
V |
V |
HSS |
V |
|
|
HSH |
V |
V |
|
H |
|
|
V |
HH |
V |
V |
|
Item | 154011 |
---|---|
Brand | Schaller |
Type | 5 way |
Size | 48x12x30 mm (ex lever) |
Weight | 75 g |
Sales unit | pce |
