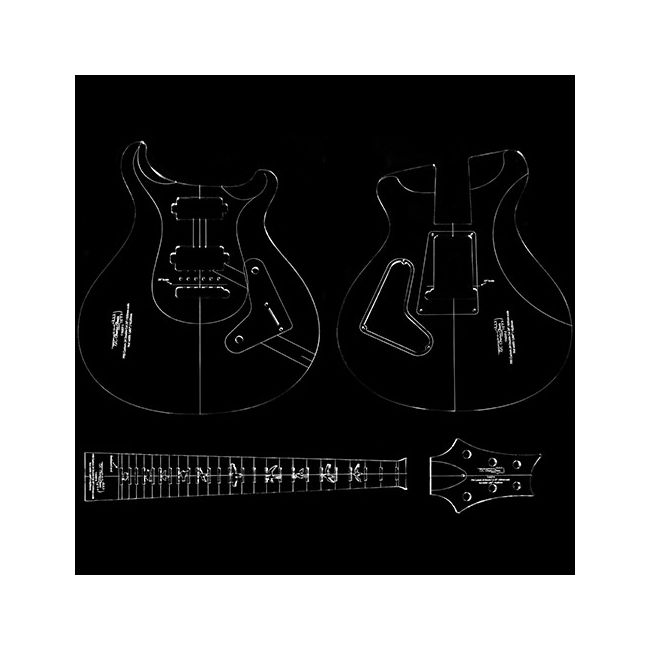

PRS Custom 24 Double Cut routing template set 4-piece

With this durable set from recycled plexiglass you have an accurate template of a 25” PRS Custom 24 frets guitar.

The templates are made from sturdy 5mm transparent plexiglass which gives an optimum view on your work and is far more wear resistant than MDF.

The body templates are equipped with centerlines and cavities for the electronics, neck pocket, pick-ups and has holes for the potmeters and bridge. In addition the positions are marked for the wiring channel and the jack.

The neck / fretboard template comes with cavities for the traditional birds inlay and has gaps for marking your fret positions.

The headstock template comes with holes for pre-drilling your tuner positions.

This set contains:
- Body template front side
- Body template back side
- Neck / fretboard template
- Headstock template

Important specifications:
- Nut width: 42,85mm
- Heel width: 60mm
- Scale: 25" / 635mm
- Frets: 24
- Pickup formfactor: Standard Humbucker

Extra options:

Backplate template
With the backplate templates you can easily create your backplates with your own choise of material, Wood or Plastic. You can find them in the extra options below.

Availability:

In stock

Item

116207-1234

€119.95 €99.13

Extra Options:

PRS Custom backplate templates. Normaly € 24,95, but with this set + €21.95 €18.14

Qty:

Details

Use:

Make sure your workpiece is placed steady, flat, at a good height with a comfortable working position and good view on your work area.
Be focused.
With routing, always wear protective clothing such as eye and ear protection and a dust mask. Use a vacuum cleaner to remove waste material and prevent that from heaping up.
Set the RPM to the advised rate that comes with your machine or router bit.
Keep the ball bearings of your template bits clean before and after use to make sure the bearing doesn’t get stuck during routing.
Never route too much material at once to prevent your router from breaking away and to avoid unnecessary ware on your router bit. Guide is maximum half of your router bits height and half of its diameter.
To create sufficient depth while keeping the guidance bearing of your template bit against the template, work with different lengths of bits, changing them when more depth is required.
secure templates with good double-sided sticky tape. If you secure the template with clamps, protect the wood of the body and make sure that your router can move freely.
Always use our templates so that the text is readable (or for left handed so that none is readable).
You can use the neck template to mark the fret positions on your fretboard. Always cut your fret slots before routing the shape of your fretboard.
Always check before routing if your purchased hardware and pick-ups fit in the template cavities.

More Information

More Information
Item	116207-1234
Brand	TLC Guitar Goods
Model	PRS Custom 24 Double Cut
Type	Complete set
Material	Plexiglass
Weight	1.5kg
Sales unit	Set/4
