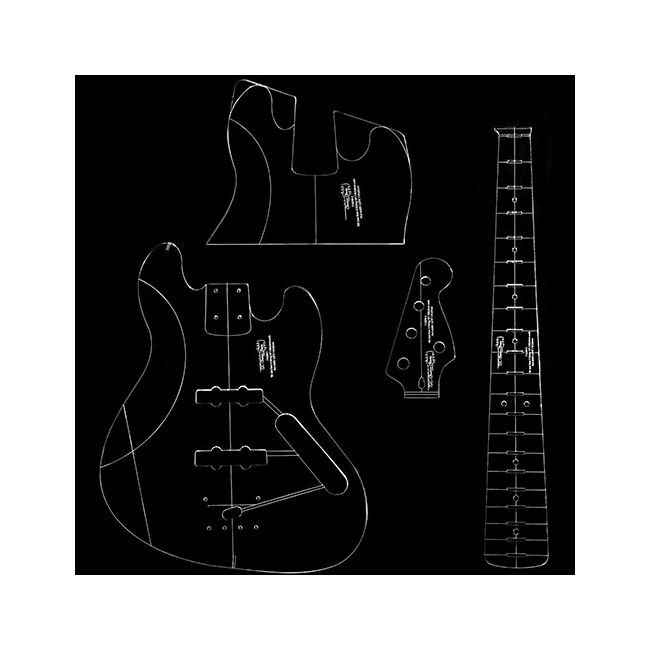

With this durable set from recycled plexiglass you have an accurate template of a 34” 20 frets ‘68s Jazz Bass 5-String guitar.
The templates are made from sturdy 5mm transparent plexiglass which gives an optimum view on your work and is far more wear resistant than MDF.
The body templates are equipped with centerlines and cavities for the electronics, neck pocket, pick-ups and has holes for the potmeters and bridge. In addition the positions are marked for the wiring channel.
The neck / fretboard template comes with drill holes for your fret positions.
The headstock template comes with holes for pre-drilling your tuner positions and has a cavity for your truss rod opening.
This set contains:
- Body template front side
- Neckpocket template
- Neck / fretboard template
- Headstock template
Important sizes:
- Nut width: 47,6mm
- Heel width: 72mm
- Scale: 34” / 863,6mm
- Frets: 20
- Pickup formfactor: Normal size / similar to Dimarzio Area J5
Extra options
Pickguard template
With this pickguard template you can make your own pickguard in the material you like.
Use:
| Item | 116209-1234 |
|---|---|
| Brand | TLC Guitar Goods |
| Model | '68s Jazz Bass |
| Type | Complete set |
| Material | Plexiglass |
| Weight | 1.75kg |
| Sales unit | Set/4 |
