'60s Mustang Bass 30" short scale routing template set 4-piece

With this durable set from recycled plexiglass you have an accurate template of a 30” short scale 19 frets ‘60s Mustang Bass guitar.

The templates are made from sturdy 5mm transparent plexiglass which gives an optimum view on your work and is far more wear resistant than MDF.

The body templates are equipped with centerlines and cavities for the electronics, neck pocket, pick-ups and has holes for the potmeters and bridge. In addition the positions are marked for the wiring channel.

The neck / fretboard template comes with drill holes for your fret positions.
The headstock template comes with holes for pre-drilling your tuner positions.

The bridge attachment holes are matched to the 18mm string spacing vintage Mustang Bass bridge. However a more modern 19mm string spacing bridge cann be placed based on the scale lines which proivides a little more space between the strings.

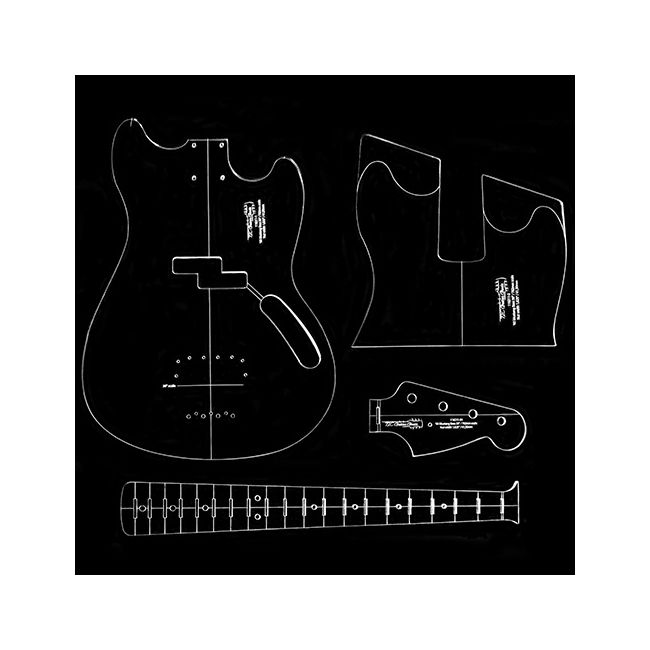

This set contains:
- Body template front side
- Neckpocket template
- Neck / fretboard template
- Headstock template

Important specifications:
- Nut width: 41,30mm
- Heel width: 58,2mm
- Scale: 30" / 762mm
- Frets: 19
- Bridge holes: 18mm string spacing vintage Mustang Bass.
- Pickup formfactor: Split Mustang Bass

Extra options

Pickguard with control plate template
With this pickguard template you can make your own pickguard and control plate in the material you like.

Availability:

In stock

Item

116211-1234

€129.95 €107.40

Extra Options:

Mustang Bass pickguard and control plate template. Normaly € 44,95 but with this set + €39.95 €33.02

Qty:

Details

Use:

Make sure your workpiece is placed steady, flat, at a good height with a comfortable working position and good view on your work area.
Be focused.
With routing, always wear protective clothing such as eye and ear protection and a dust mask. Use a vacuum cleaner to remove waste material and prevent that from heaping up.
Set the RPM to the advised rate that comes with your machine or router bit.
Keep the ball bearings of your template bits clean before and after use to make sure the bearing doesn’t get stuck during routing.
Never route too much material at once to prevent your router from breaking away and to avoid unnecessary ware on your router bit. Guide is maximum half of your router bits height and half of its diameter.
To create sufficient depth while keeping the guidance bearing of your template bit against the template, work with different lengths of bits, changing them when more depth is required.
secure templates with good double-sided sticky tape. If you secure the template with clamps, protect the wood of the body and make sure that your router can move freely.
Always use our templates so that the text is readable (or for left handed so that none is readable).
You can use the neck template to mark the fret positions on your fretboard. Always cut your fret slots before routing the shape of your fretboard.
Always check before routing if your purchased hardware and pick-ups fit in the template cavities.

More Information

More Information
Item	116211-1234
Brand	TLC Guitar Goods
Model	'60s Mustang Bass
Type	Complete set
Material	Plexiglass
Weight	1.75kg
Sales unit	Set/4
